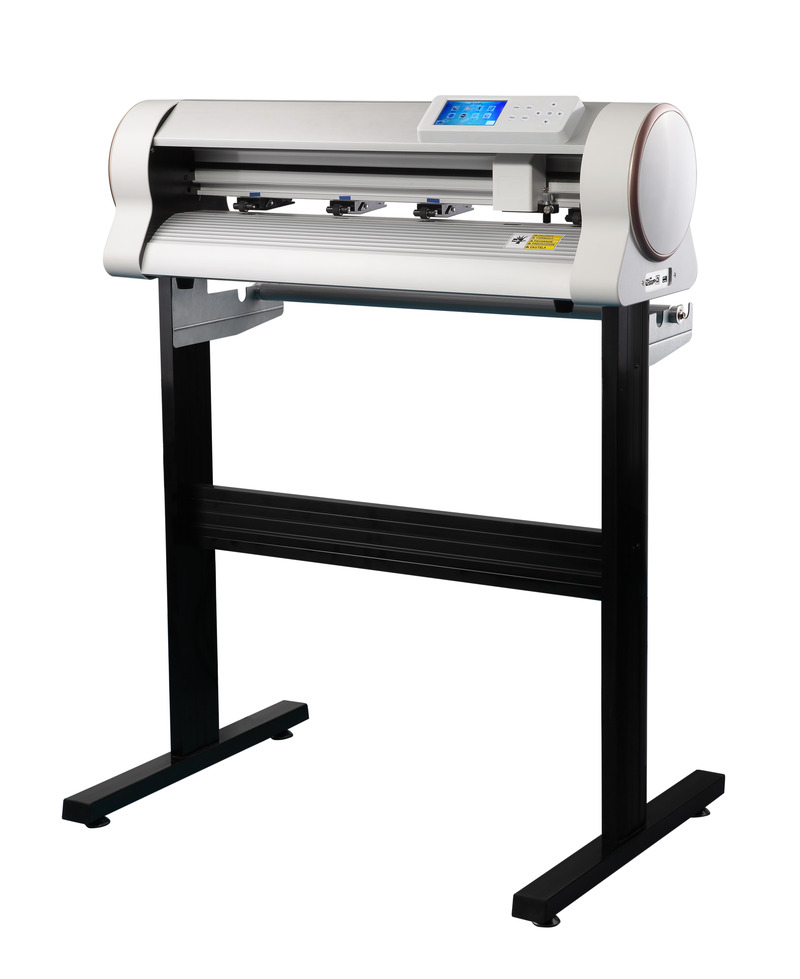

TalentCut CA630 contour cutting plotter with signmaster 1050*330*400mm

2 Units
MOQ
$400.00(2 - 4 Units) $380.00(>=5 Units)
Prijs
TalentCut CA630 contour cutting plotter with signmaster 1050*330*400mm
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: CA630
Voltage: AC110V/220V
Cache Capacity: 128MB
Paper Feed Width: 730mm
Cutter Pressure: 0-500g(optional 0-1000g)
Cutting Width: 630 mm
Cutting Speed: 500mm/s
Driver: Stepper Motor
Cutting Length: MAX 8Meters
Repeat Cutting: 1-500 Times
Size: 1050*330*400mm
free Coreldraw plug-in: 3M reflective film cut
Step Moter: heat transfer paper cut
Basis informatie
Model Number: CA630
Betalen & Verzenden Algemene voorwaarden
Packaging Details: standard packing
Productomschrijving
Product Description


CA Series Main Features

CA series vinyl cutter with automatic contour function.            High speed max 40inches per second ,save you time and improve work efficiency .                                                                 Ultra-quite design meet your high requirement for work environment.
1.With laser sensor(contour function)
2.High force 1000g to cut reflective film(optional),Support CoreIDRAW output directly,Can work with U disc directly,
3.Real high speed 256MB memory
4.High precision steel roller: guaranteed 5m without deviation of paper feeding
5.Low noise:ultra quiet design
6.High performance 32-bit processor with ARM Cortex-M3
7.High accuracy machine structure allows to cut 2mm letters without distortion
Model

CA630(24'')
CA1200(48'')
CA1500(59'')
Media Way
Floor Stand
Floor Stand
Floor Stand
Main Board
High-performance & intelligent ARM 32 bits CPU;128MB memory
Driver
DC Stepping motor
Max Paper Feed Width
430mm
730mm
1370mm
1600mm
Max Cutting Width
330mm
630mm
1270mm
1500mm
Max Cutting Speed
                                                                           500mm/s
Cutting Force
0-500g/0-1000g (optional configuration)
Mechanical Precision
0.05mm
Repeatable Precision
< +-0.1mm
Plotter Instruction
DM-PL/HP-GL Automatic Identification
Interfaces
USB / RS232 port, U-disc port
Power Supply
AC110V /220V±10%, 50Hz/60Hz
Laser Positioning
                                Contour cutting function; Compatible with Flexi10, Artcut, Signcut
Software
Plug-in for Coreldraw, Artcut, Signcut and Signmaster
Noise at Work
≤25 DB
External Dimension
1045*330*400mm
1590*330*400mm
1890*330*400mm
Shipping Weight
23kgs
32kgs
45kgs

                    Strong Integrated Carriage

                    wider range of applications


Integrated Grit Roller

High precision


Big Touch Screen

Easier Operation like a Phone

Strong Pinch Roller

attractive and durable

Three Interfaces

 U Disc Port(MH,MG,MS Series only),work without Computer

Standard  Blade

Each machine with 1 blade holder,3 blades

MYCUT Vinyl Cutter Performance Video Link

U Disc auto contour cutting(NO need link with Computer!!)
https://www.youtube.com/watch?v=WzRUTo6sPBY&feature=youtu.be

2mm cutting(even 2mm Letter can cut ,so high precision!!)
https://www.youtube.com/watch?v=D1sWWCc7_S4

coreldraw auto contour cutting (Free coreldraw Plug-in, supporting Coreldraw X3-X7 edition!)
https://www.youtube.com/watch?v=LQ3zchv05fE

MYCUT cutting plotter 1cm+3cm circle cutting(Perfect and stable MYCUT Vinyl Cutter!)
https://www.youtube.com/watch?v=SJvdZTqeTaU

MYCUT cutting plotter 5CM circle  (high precision to cut the circle)
https://www.youtube.com/watch?v=k9MTgYetpsg

MYCUT cutting plotter 3M Reflective film cutting  (High force to cut 3M Refective film!)
https://www.youtube.com/watch?v=nbk0kqpq1j8

Standard Accessories


1) User Manual(CD)         2) 1 RS232 serial cable         3) 1 Power cable and 1 USB cable
4) 3 Cutting Blade            5) 1 Blade Holder                    6) 1 drawing pen            7) warranty card

Optional Choices
1)floor stand
2)laser point
3)automatic contour function
4)Signmaster Standard option
5)Basket
6)high cutting force
7)U Disc interface(work without computer)
8)bluetooth or wifi wireless transfer
Note:we will extra charge for optional configuration,please contact us for details.
MYCUT Vinyl Cutter Application

            Label /Paper Cut


               Advertise Sign


Wall / Window Sticker

                                    Heat Transfer

                                                  Car Sticker

Packing & Delivery


Standard Packing

With great quality Foam and Carton Packing

Make sure the machine won't be damaged during shipping



Delivery Info

within 7 days for order less than 100 units.

Within 15 days for order more than 100 units.


Warranty &Service

1.One year free warranty, main parts are free charge when damaged during the guarantee period.


2.Free training course at our factory with professional engineers.

3.We provide the consumable parts at agent price when you need replacement

4.24 hours online service each day, free online technical support.

5.We provide door to door technical support to agents, if necessary.
Factory Info

Shenzhen Huansheng Machinery Co.,Ltd                          MYCUT Cutting Plotter Factory


a professional manufacture of vinyl cutter, engraving machine and other CNC equipment. Our factory comply with ISO9001: 2008 quality control as the production standards, insists to test every machine meticulously in the workshop. And our professional team offer customers with comprehensive and thoughtful service. For all our vinyl cutter,engraving machine and CNC equipment, we can guarantee zero-defect before delivery.

Our vinyl cutter have been widely used in the following areas:Advertise sign,sticker,paper cutting,traffic signs and heat transfer industries.

Our R&D team offers new products with fashion designs constantly and aims to supply the best OEM&ODM solutions to our partners.

Our sales team offers professional service to meet our customers' requirements including products consulting,shipping methods, payment terms and after-service,etc.

HuanSheng comply with ISO9001: 2008 quality control as the production standards, insists to test every machine meticulously in the workshop. we supply aging for 48 hours before delivery.we can guarantee zero-defect before delivery.

Huansheng Team believes best quality and service to expand the global market,and create more values for our partners.
